Grumman F-14 Tomcat

f-14 Tomcat launching from aircraft carrier - dale snodgrass

The Grumman F-14 Tomcat is an American supersonic, twin-engine, two-seat, twin-tail, variable-sweep wing fighter aircraft. It was the first such U.S. jet fighter with twin tails. The Tomcat was developed for the United States Navy’s Naval Fighter Experimental (VFX) program after the collapse of the F-111B project. The F-14 was the first of the American Teen Series fighters, which were designed incorporating air combat experience against MiG fighters during the Vietnam War.

The F-14 first flew on 21 December 1970 and made its first deployment in 1974 with the U.S. Navy aboard USS Enterprise (CVN-65), replacing the McDonnell Douglas F-4 Phantom II. The F-14 served as the U.S. Navy’s primary maritime air superiority fighter, fleet defense interceptor, and tactical aerial reconnaissance platform into the 2000s. The Low Altitude Navigation and Targeting Infrared for Night (LANTIRN) pod system were added in the 1990s and the Tomcat began performing precision ground-attack missions.

In the 1980s, F-14s were used as land-based interceptors by the Islamic Republic of Iran Air Force during the Iran–Iraq War, where they saw combat against Iraqi warplanes. Iranian F-14s reportedly shot down at least 160 Iraqi aircraft during the war, while only 12 to 16 Tomcats were lost; at least half of these losses were due to accidents.

The Tomcat was retired from the U.S. Navy’s active fleet on 22 September 2006, having been supplanted by the Boeing F/A-18E/F Super Hornet. The F-14 remains in service with Iran’s air force, having been exported to Iran in 1976. In November 2015, reports emerged of Iranian F-14s reportedly flying escort for Russian Tu-95 bombers on air strikes in Syria.

Development

Background

Beginning in the late 1950s, the U.S. Navy sought a long-range, high-endurance interceptor to defend its carrier battle groups against long-range anti-ship missiles launched from the jet bombers and submarines of the Soviet Union. The U.S. Navy needed a Fleet Air Defense (FAD) aircraft with a more powerful radar and longer range missiles than the F-4 Phantom II carried to intercept both enemy bombers and missiles. The Navy was directed to participate in the Tactical Fighter Experimental (TFX) program with the U.S. Air Force by Secretary of Defense Robert McNamara. McNamara wanted “joint” solutions to service aircraft needs to reduce development costs and had already directed the Air Force to buy the F-4 Phantom II, which was developed for the Navy and Marine Corps. The Navy strenuously opposed the TFX as it feared compromises necessary for the Air Force’s need for a low-level attack aircraft would adversely impact the aircraft’s performance as a fighter.

Weight and performance issues plagued the U.S. Navy F-111B variant for TFX and would not be resolved to the Navy’s satisfaction. The F-111 manufacturer General Dynamics partnered with Grumman on the Navy F-111B. With the F-111B program in distress, Grumman began studying improvements and alternatives. In 1966, the Navy awarded Grumman a contract to begin studying advanced fighter designs. Grumman narrowed down these designs to its 303 design. Vice Admiral Thomas F. Connolly, Deputy Chief of Naval Operations for Air Warfare, flew the developmental F-111A variant on a flight and discovered that it had difficulty going supersonic and had poor carrier landing characteristics. He later testified before Congress about his concerns against the official U.S. Department of the Navy position and, in May 1968, Congress stopped funding for the F-111B, allowing the Navy to pursue an answer tailored to its requirements. The name “Tomcat” was partially chosen to pay tribute to Admiral Connolly, as the nickname “Tom’s Cat” had already been widely used by the manufacturer, although the name also followed the Grumman tradition of naming its fighter aircraft after felines.

VFX

The F-111B had been designed for the long-range Fleet Air Defense (FAD) interceptor role, but not for new requirements for air combat based on the experience of American aircraft against agile MiG fighters over Vietnam. The Navy studied the need for VFAX, an additional fighter that was more agile than the F-4 Phantom for air-combat and ground-attack roles. Grumman continued work on its 303 design and offered it to the Navy in 1967, which led to fighter studies by the Navy. The company continued to refine the design into 1968.

In July 1968, the Naval Air Systems Command (NAVAIR) issued a request for proposals (RFP) for the Naval Fighter Experimental (VFX) program. VFX called for a tandem two-seat, twin-engined air-to-air fighter with a maximum speed of Mach 2.2. It would also have a built-in M61 Vulcan cannon and a secondary close air support role. The VFX’s air-to-air missiles would be either six AIM-54 Phoenix or a combination of six AIM-7 Sparrow and four AIM-9 Sidewinder missiles. Bids were received from General Dynamics, Grumman, Ling-Temco-Vought, McDonnell Douglas and North American Rockwell; four bids incorporated variable-geometry wings.

McDonnell Douglas and Grumman were selected as finalists in December 1968. Grumman was selected for the contract award in January 1969. Grumman’s design reused the TF30 engines from the F-111B, though the Navy planned on replacing them with the Pratt & Whitney F401-400 engines under development for the Navy, along with the related Pratt & Whitney F100 for the USAF. Though lighter than the F-111B, it was still the largest and heaviest U.S. fighter to fly from an aircraft carrier, a consequence of the requirement to carry the large AWG-9 radar and AIM-54 Phoenix missiles (from the F-111B) and an internal fuel load of 16,000 lb (7,300 kg).

Upon winning the contract for the F-14, Grumman greatly expanded its Calverton, Long Island, New York facility for evaluating the aircraft. Much of the testing, including the first of many compressor stalls and multiple ejections, took place over Long Island Sound. In order to save time and forestall interference from Secretary McNamara, the Navy skipped the prototype phase and jumped directly to full-scale development; the Air Force took a similar approach with its F-15. The F-14 first flew on 21 December 1970, just 22 months after Grumman was awarded the contract, and reached initial operational capability (IOC) in 1973. The United States Marine Corps was initially interested in the F-14 as an F-4 Phantom II replacement; going so far as to send officers to Fighter Squadron One Twenty-Four (VF-124) to train as instructors. The Marine Corps pulled out of any procurement when the development of the stores’ management system for ground attack munitions was not pursued. An air-to-ground capability was not developed until the 1990s.

Firing trials involved launches against simulated targets of various types, from cruise missiles to high-flying bombers. AIM-54 Phoenix missile testing from the F-14 began in April 1972. The longest single Phoenix launch was successful against a target at a range of 110 nmi (200 km) in April 1973. Another unusual test was made on 22 November 1973, when six missiles were fired within 38 seconds at Mach 0.78 and 24,800 ft (7,600 m); four scored direct hits.

Improvements and changes

With time, the early versions of all the missiles were replaced by more advanced versions, especially with the move to full solid-state electronics that allowed better reliability, better ECCM and more space for the rocket engine. So the early arrangement of the AIM-54A Phoenix active-radar air-to-air missile, the AIM-7E-2 Sparrow semi-active radar homing air-to-air missile, and the AIM-9J Sidewinder heat-seeking air-to-air missile was replaced in the 1980s with the B (1983) and C (1986) version of the Phoenix, the F (1977), M (1982), P (1987 or later) for Sparrows, and with the Sidewinder, L (1979) and M (1982). Within these versions, there are several improved batches (for example, Phoenix AIM-54C++).

The Tactical Airborne Reconnaissance Pod System (TARPS) was developed in the late 1970s for the F-14. Approximately 65 F-14As and all F-14Ds were modified to carry the pod. TARPS was primarily controlled by the Radar Intercept Officer (RIO) via an extra display for observing reconnaissance data. The “TARPS Digital (TARPS-DI)” was a 1996 upgrade featuring a digital camera. The digital camera was further updated beginning in 1998 with the “TARPS Completely Digital (TARPS-CD)” configuration that also provided real-time transmission of imagery.

Some of the F-14A aircraft underwent engine upgrades to the GE F110-400 in 1987. These upgraded Tomcats were redesignated F-14A+, which was later changed to F-14B in 1991. The F-14D variant was developed at the same time; it included the GE F110-400 engines with newer digital avionics systems such as a glass cockpit, and compatibility with the Link 16 secure datalink. The Digital Flight Control System (DFCS) notably improved the F-14’s handling qualities when flying at a high angle of attack or in air combat maneuvering.

While the F-14 had been developed as a lightweight alternative to the 80,000 lb (36,000 kg) F-111B, the F-14 was still the heaviest and most expensive fighter of its time. VFAX was revived in the 1970s as a lower cost solution to replacing the Navy and Marine Corps’s fleets of F-4s, and A-7s. VFAX was directed to review the fighters in the USAF Light Weight Fighter competition, which led to the development of the F/A-18 Hornet as roughly a midsize fighter and attack aircraft. In 1994, Congress would reject Grumman proposals to the Navy to upgrade the Tomcat beyond the D model (such as the Super Tomcat 21, the cheaper QuickStrike version, and the more advanced Attack Super Tomcat 21).

Ground attack upgrades

In the 1990s, with the pending retirement of the A-6 Intruder, the F-14 air-to-ground program was resurrected. Trials with live bombs had been carried out in the 1980s; the F-14 was cleared to use basic iron bombs in 1992. During Operation Desert Storm of the Gulf War, most air-to-ground missions were left to A-7, A-6 Intruder and F/A-18 Hornet squadrons, while the F-14s focused on air defense operations. Following Desert Storm, F-14As and F-14Bs underwent upgrades to avionics and cockpit displays to enable the use of precision munitions, enhance defensive systems, and apply structural improvements. The new avionics were comparable with the F-14D; these upgraded aircraft were designated F-14A (Upgrade) and F-14B (Upgrade) respectively.

By 1994, Grumman and the Navy were proposing ambitious plans for Tomcat upgrades to plug the gap between the retirement of the A-6 and the F/A-18E/F Super Hornet entering service. However, the upgrades would have taken too long to implement to meet the gap, and were priced in the billions. The U.S. Congress considered this too expensive for an interim solution. A quick, inexpensive upgrade using the Low Altitude Navigation and Targeting Infrared for Night (LANTIRN) targeting pod was devised. The LANTIRN pod provided the F-14 with a forward-looking infrared (FLIR) camera for night operations and a laser target designator to direct laser-guided bombs (LGB). Although LANTIRN is traditionally a two-pod system, an AN/AAQ-13 navigation pod with terrain-following radar and a wide-angle FLIR, along with an AN/AAQ-14 targeting pod with a steerable FLIR and a laser target designator, the decision was made to only use the targeting pod. The Tomcat’s LANTIRN pod was altered and improved over the baseline configuration, such as a Global Positioning System / Inertial Navigation System (GPS-INS) capability to allow an F-14 to accurately locate itself. The pod was carried on the right wing glove pylon.

The LANTIRN pod did not require changes to the F-14’s own system software, but the pod was designed to operate on a MIL-STD-1553B bus not present on the F-14A or B. Consequently, Martin Marietta specially developed an interface card for LANTIRN. The Radar Intercept Officer (RIO) would receive pod imagery on a 10-inch Programmable Tactical Information Display (PTID) or another Multi-Function Display in the F-14 rear cockpit and guided LGBs using a new hand controller installed on the right side console. Initially, the hand controller replaced the RIO’s TARPS control panel, meaning a Tomcat configured for LANTIRN could not carry TARPS and the reverse, but eventually a workaround was later developed to allow a Tomcat to carry LANTIRN or TARPS as needed.

An upgraded LANTIRN named “LANTIRN 40K” for operations up to 40,000 ft (12,000 m) was introduced in 2001, followed by Tomcat Tactical Targeting (T3) and Fast Tactical Imagery (FTI), to provide precise target coordinate determination and ability to transmit images in-flight. Tomcats also added the ability to carry the GBU-38 Joint Direct Attack Munition (JDAM) in 2003, giving it the option of a variety of LGB and GPS-guided weapons. Some F-14Ds were upgraded in 2005 with a ROVER III Full Motion Video (FMV) downlink, a system that transmits real-time images from the aircraft’s sensors to the laptop of Forward air controller (FAC) on the ground.

Design

Overview

The F-14 Tomcat was designed as both an air superiority fighter and a long-range naval interceptor, which enabled it to both serve as escort attack aircraft when armed with Sparrow missiles and fleet air defense loitering interceptor role when armed with Phoenix missiles. The F-14 was designed with a two-seat cockpit with a bubble canopy which affords all-around visibility aiding aircrew in air-to-air combat. It features variable geometry wings that swing automatically during flight. For high-speed intercept, they are swept back and they swing forward for lower speed flight. It was designed to improve on the F-4 Phantom’s air combat performance in most respects.

The F-14’s fuselage and wings allow it to climb faster than the F-4, while the twin-tail arrangement offers better stability. The F-14 is equipped with an internal 20 mm M61 Vulcan Gatling cannon mounted on the left side (unlike the Phantom, which was not equipped with an internal gun in the US Navy), and can carry AIM-54 Phoenix, AIM-7 Sparrow, and AIM-9 Sidewinder anti-aircraft missiles. The twin engines are housed in widely spaced nacelles. The flat area of the fuselage between the nacelles is used to contain fuel and avionics systems, such as the wing-sweep mechanism and flight controls, as well as weaponry since the wings are not used for carrying ordnance. By itself, the fuselage provides approximately 40 to 60 percent of the F-14’s aerodynamic lifting surface depending on the wing sweep position. The lifting body characteristics of the fuselage allowed one F-14 to safely land after suffering a mid-air collision that sheared off more than half of the plane’s right wing in 1991.

Variable-geometry wings and aerodynamic design

The F-14’s wing sweep can be varied between 20° and 68° in flight, and can be automatically controlled by the Central Air Data Computer, which maintains wing sweep at the optimum lift-to-drag ratio as the Mach number varies; pilots can manually override the system if desired. When parked, the wings can be “overswept” to 75° to overlap the horizontal stabilizers to save deck space aboard carriers. In an emergency, the F-14 can land with the wings fully swept to 68°, although this presents a significant safety hazard due to greatly increased stall speed. Such an aircraft would typically be diverted from an aircraft carrier to a land base if an incident did occur. The F-14 has flown safely with an asymmetrical wing-sweep during testing, and was deemed able to land aboard a carrier if needed in an emergency. The wing pivot points are significantly spaced far apart. This has two benefits. The first is that weaponry can be fitted on a pylon on the fixed wing glove, liberating the wings from having swiveling pylons fitted, a feature which had proven to add significant drag on the F-111B. Since less of the total lifting area is variable, the centre of lift moves less as the wings moves, reducing trim drag at high speed. When the wing is swept back, its thickness-to-chord ratio decreases, which allows the aircraft to satisfy the Mach 2.4 top speed required by the U.S. Navy. The body of the aircraft contributes significantly to overall lift and so the Tomcat possesses a lower wing loading than its wing area would suggest. When carrying four Phoenix missiles or other heavy stores between the engines this advantage is lost and maneuverability is reduced in those configurations.

Ailerons are not fitted, with roll control being provided by wing-mounted spoilers at low speed (which are disabled if the sweep angle exceeds 57°), and by differential operation of the all-moving tailerons at high speed. Full-span slats and flaps are used to increase lift both for landing and combat, with slats being set at 17° for landing and 7° for combat, while flaps are set at 35° for landing and 10° for combat. An air bag fills up the space occupied by the swept-back wing when the wing is in the forward position and a flexible fairing on top of the wing smooths out the shape transition between the fuselage and top wing area. The twin tail layout helps in maneuvers at high angle of attack (AoA) while reducing the height of the aircraft to fit within the limited roof clearance of hangars aboard aircraft carriers. Two triangular shaped retractable surfaces, called glove vanes, were originally mounted in the forward part of the wing glove, and could be automatically extended by the flight control system at high Mach numbers. They were used to generate additional lift (force) ahead of the aircraft’s center of gravity, thus helping to compensate for mach tuck at supersonic speeds. Automatically deployed at above Mach 1.4, they allowed the F-14 to pull 7.5 g at Mach 2 and could be manually extended with wings swept full aft. They were later disabled, however, owing to their additional weight and complexity. The air brakes consist of top-and-bottom extendable surfaces at the rearmost portion of the fuselage, between the engine nacelles. The bottom surface is split into left and right halves; the tail hook hangs between the two-halves, an arrangement sometimes called the “castor tail”.

Engines and structure

The F-14 was initially equipped with two Pratt & Whitney TF30 (or JTF10A) augmented turbofan engines, each rated at 20,900 lb (93 kN) of thrust, which enabled the aircraft to attain a maximum speed of Mach 2.34. The F-14 would normally fly at a cruising speed for reduced fuel consumption, which was important for conducting lengthy patrol missions. Both of the engine’s rectangular air intake ramps were equipped with movable ramps and bleed doors to meet the airflow requirements of the engine but prevent dangerous shockwaves from entering. De Laval nozzles were also fitted to the engine’s exhaust.

The performance of the TF30 engine became an object of criticism. John Lehman, Secretary of the Navy in the 1980s, told the U.S. Congress that the TF30/F-14 combination was “probably the worst engine/airframe mismatch we have had in years” and that the TF30 was “a terrible engine”; 28% of all F-14 accidents were attributed to the engine. A high frequency of turbine blade failures led to the reinforcement of the entire engine bay to limit damage from such failures. The engines also had proved to be extremely prone to compressor stalls, which could easily result in loss of control, severe yaw oscillations, and could lead to an unrecoverable flat spin. At specific altitudes, exhaust produced by missile launches could cause an engine compressor stall. This led to the development of a bleed system that temporarily blocks the frontal intake ramp and reduces engine power during missile launch. With the TF30, the F-14’s overall thrust-to-weight ratio at maximum takeoff weight is around 0.56, considerably less than the F-15A’s ratio of 0.85; when fitted with the General Electric F110 engine, an improved thrust-to-weight ratio of 0.73 at maximum weight and 0.88 at normal takeoff weight was achieved. Despite having large differences in thrust, the F-14A, F-14B, and later F-14D with the newer General Electric F110 engines were rated at the same top speed.

The wings have a two-spar structure with integral fuel tanks. Around 25% of the structure is made of titanium, including the wing box, wing pivots, and upper and lower wing skins; this is a light, rigid, and strong material. Electron beam welding was used in the construction of the titanium parts.

The landing gear is very robust, in order to withstand catapult launches (takeoffs) and recoveries (landings) needed for carrier operations. It comprises a double nosewheel and widely spaced single main wheels. There are no hardpoints on the sweeping parts of the wings, and so all the armament is fitted on the belly between the air intake ramps and on pylons under the wing gloves. Internal fuel capacity is 2,400 US gal (9,100 l): 290 US gal (1,100 l) in each wing, 690 US gal (2,600 l) in a series of tanks aft of the cockpit, and a further 457 US gal (1,730 l) in two feeder tanks. It can carry two 267 US gal (1,010 l) external drop tanks under the engine intake ramps. There is also an air-to-air refueling probe, which folds into the starboard nose.

Avionics and flight controls

The cockpit has two seats, arranged in tandem, outfitted with Martin-Baker GRU-7A rocket-propelled ejection seats, rated from zero altitude and zero airspeed up to 450 knots. The canopy is spacious, and fitted with four mirrors to effectively provide all-round visibility. Only the pilot has flight controls; the flight instruments themselves are of a hybrid analog-digital nature. The cockpit also features a head-up display (HUD) to show primarily navigational information; several other avionics systems such as communications and direction-finders are integrated into the AWG-9 radar’s display. A significant feature of the F-14 is its Central Air Data Computer (CADC), designed by Garrett AiResearch, that forms the onboard integrated flight control system. It uses a MOSFET-based Large-Scale Integration chipset, the MP944, making it the first microprocessor in history.

The aircraft’s large nose contains a two-person crew and several bulky avionics systems. The main element is the Hughes AN/AWG-9 X band radar; the antenna is a 36 in (91 cm)-wide planar array, and has integrated Identification friend or foe antennas. The AWG-9 has several search and tracking modes, such as Track while scan (TWS), Range-While-Search (RWS), Pulse-Doppler Single-Target Track (PDSTT), and Jam Angle Track (JAT); a maximum of 24 targets can be tracked simultaneously, and six can be engaged in TWS mode up to around 60 mi (97 km). Cruise missiles are also possible targets with the AWG-9, which can lock onto and track small objects even at low altitude when in Pulse-Doppler mode. For the F-14D, the AWG-9 was replaced by the upgraded APG-71 radar. The Joint Tactical Information Distribution System (JTIDS)/Link 16 for data communications was added later on.

The F-14 also features electronic countermeasures (ECM) and radar warning receiver (RWR) systems, chaff/flare dispensers, fighter-to-fighter data link, and a precise inertial navigation system. The early navigation system was inertial-based; point-of-origin coordinates were programmed into a navigation computer and gyroscopes would track the aircraft’s every motion to calculate distance and direction from that starting point. Global Positioning System later was integrated to provide more precise navigation and redundancy in case either system failed. The chaff/flare dispensers are located on the underside of the fuselage and on the tail. The RWR system consists of several antennas on the aircraft’s fuselage, which can roughly calculate both direction and distance of enemy radar users; it can also differentiate between search radar, tracking radar, and missile-homing radar.

Featured in the sensor suite was the AN/ALR-23, an Infra-red search and track sensor using indium antimonide detectors, mounted under the nose; however this was replaced by an optical system, Northrop’s AAX-1, also designated TCS (TV Camera Set). The AAX-1 helps pilots visually identify and track aircraft, up to a range of 60 miles (97 km) for large aircraft. The radar and the AAX-1 are linked, allowing the one detector to follow the direction of the other. A dual infrared/optical detection system was adopted on the later F-14D.

Armament

The F-14 was designed to combat highly maneuverable aircraft as well as the Soviet anti-ship cruise missile and bomber (Tupolev Tu-16, Tupolev Tu-22, Tupolev Tu-22M) threats. The Tomcat was to be a platform for the AIM-54 Phoenix, but unlike the canceled F-111B, it could also engage medium- and short-range threats with other weapons. The F-14 is an air superiority fighter, not just a long-range interceptor aircraft. Over 6,700 kg (14,800 lb) of stores can be carried for combat missions on several hardpoints under the fuselage and under the wings. Commonly, this means a maximum of two–four Phoenixes or Sparrows on the belly stations, two Phoenixes/Sparrows on the wing hardpoints, and two Sidewinders on the wing hardpoints. The F-14 is also fitted with an internal 20 mm M61 Vulcan Gatling-type cannon.

Operationally, the capability to hold up to six Phoenix missiles was never used, although early testing was conducted; there was never a threat requirement to engage six hostile targets simultaneously and the load was too heavy to safely recover aboard an aircraft carrier in the event that the missiles were not fired. During the height of Cold War operations in the late 1970s and 1980s, the typical weapon loadout on carrier-deployed F-14s was usually only one AIM-54 Phoenix, augmented by two AIM-9 Sidewinders, two AIM-7 Sparrow IIIs, a full loadout of 20 mm ammunition and two drop tanks. The Phoenix missile was used twice in combat by the U.S. Navy, both over Iraq in 1999, but the missiles did not score any kills.

Iran made use of the Phoenix system, claiming dozens of kills with it during the 1980–1988 Iran–Iraq War. Due to shortage of air-to-air missiles, Iran tried to use other missiles on the Tomcat. It attempted to integrate the Russian R-27R “Alamo” BVR missile, but was apparently unsuccessful. In 1985, Iran started Project Sky Hawk, attempting to adapt I-Hawk surface-to-air missiles, which Iran had in its inventory, for F-14s. The modified missiles were successfully tested in 1986 and one or two were used in combat, but the project was abandoned due to guidance problems.

Operational history

United States

The F-14 began replacing the F-4 Phantom II in U.S. Navy service starting in September 1974 with squadrons VF-1 “Wolfpack” and VF-2 “Bounty Hunters” aboard USS Enterprise and participated in the American withdrawal from Saigon. The F-14 had its first kills in U.S. Navy service on 19 August 1981 over the Gulf of Sidra in what is known as the Gulf of Sidra incident. In that engagement, two F-14s from VF-41 Black Aces were engaged by two Libyan Su-22 “Fitters”. The F-14s evaded the short range heat seeking AA-2 “Atoll” missile and returned fire, downing both Libyan aircraft. U.S. Navy F-14s once again were pitted against Libyan aircraft on 4 January 1989, when two F-14s from VF-32 shot down two Libyan MiG-23 “Floggers” over the Gulf of Sidra in a second Gulf of Sidra incident.

Its first sustained combat use was as a photo reconnaissance platform. The Tomcat was selected to inherit the reconnaissance mission upon the departure of the dedicated RA-5C Vigilante and RF-8G Crusaders from the fleet. A large pod called the Tactical Airborne Reconnaissance Pod System (TARPS) was developed and fielded on the Tomcat in 1981. With the retirement of the last RF-8G Crusaders in 1982, TARPS F-14s became the U.S. Navy’s primary tactical reconnaissance system. One of two Tomcat squadrons per airwing was designated as a TARPS unit and received 3 TARPS capable aircraft and training for 4 TARPS aircrews.

While the Tomcat was being used by Iran in combat against Iraq in its intended air superiority mission in the early 1980s, the U.S. Navy found itself flying regular daily combat missions over Lebanon to photograph activity in the Bekaa Valley. At the time, the Tomcat had been thought too large and vulnerable to be used over land, but the need for imagery was so great that Tomcat aircrews developed high-speed medium altitude tactics to deal with considerable AAA and SA-7 SAM threat in the Bekaa area. The first exposure of a Navy Tomcat to an SA-2 missile was over Somalia in April 1983 when a local battery was unaware of two Tomcats scheduled for a TARPS mission in a prelude to an upcoming international exercise in the vicinity of Berbera. An SA-2 was fired at the second Tomcat while conducting 10,000-ft mapping profile at max conserve setting. The Tomcat aircrews spotted the missile launch and dove for the deck thereby evading it without damage. The unexpected demand for combat TARPS laid the way for high altitude sensors such as the KA-93 Long Range Optics (LOROP) to be rapidly procured for the Tomcat as well as an Expanded Chaff Adapter (ECA) to be incorporated in an AIM-54 Phoenix Rail. Commercial “Fuzz buster” type radar detectors were also procured and mounted in pairs in the forward cockpit as a stop gap solution to detect SAM radars such as the SA-6. The ultimate solution was an upgrade to the ALR-67 then being developed, but it would not be ready until the advent of the F-14A+ later in the 1980s.

The participation of the F-14 in the 1991 Operation Desert Storm consisted of Combat Air Patrol (CAP) over the Red Sea and the Persian Gulf and overland missions consisting of strike escort and reconnaissance. Until the waning days of Desert Storm, in-country air superiority was tasked to USAF F-15 Eagles due to the way the Air Tasking Orders (ATO) delegated primary overland CAP stations to the F-15 Eagle. The governing Rules of Engagement (ROE) also dictated a strict Identification Friend or Foe (IFF) requirement when employing Beyond Visual Range weapons such as the AIM-7 Sparrow and particularly the AIM-54 Phoenix. This hampered the Tomcat from using its most powerful weapon. Furthermore, the powerful emissions from the AWG-9 radar are detectable at great range with a radar warning receiver. Iraqi fighters routinely retreated as soon as the Tomcats “lit them up” with the AWG-9. The U.S. Navy suffered its only F-14 loss from enemy action on 21 January 1991 when BuNo 161430, an F-14A upgraded to an F-14A+, from VF-103 was shot down by an SA-2 surface-to-air missile while on an escort mission near Al Asad airbase in Iraq. Both crews survived ejection with the pilot being rescued by USAF Special Operation Forces and the RIO being captured by Iraqi troops as a POW until the end of the war. The F-14 also achieved its final kill in US service, a Mi-8 “Hip” helicopter, with an AIM-9 Sidewinder.

In 1995, F-14s from VF-14 and VF-41 participated in Operation Deliberate Force as well as Operation Allied Force in 1999, and in 1998, VF-32 and VF-213 participated in Operation Desert Fox. On 15 February 2001, the Joint Direct Attack Munition or JDAM was added to the Tomcat’s arsenal. On 7 October 2001, F-14s would lead some of the first strikes into Afghanistan marking the start of Operation Enduring Freedom and the first F-14 drop of a JDAM occurred on 11 March 2002. F-14s from VF-2, VF-31, VF-32, VF-154, and VF-213 would also participate in Operation Iraqi Freedom. The F-14Ds of VF-2, VF-31, and VF-213 obtained JDAM capability in March 2003. On 10 December 2005, the F-14Ds of VF-31 and VF-213 were upgraded with a ROVER III downlink for transmitting images to a ground Forward Air Controller (FAC). The Navy decided to retire the F-14 with the F/A-18E/F Super Hornet filling the roles of fleet defense and strike formerly filled by the F-14.

The last American F-14 combat mission was completed on 8 February 2006, when a pair of Tomcats landed aboard USS Theodore Roosevelt after one dropped a bomb over Iraq. During their final deployment with Theodore Roosevelt, VF-31 and VF-213 collectively completed 1,163 combat sorties totaling 6,876 flight hours, and dropped 9,500 lb (4,300 kg) of ordnance during reconnaissance, surveillance, and close air support missions in support of Operation Iraqi Freedom. USS Theodore Roosevelt launched an F-14D, of VF-31, for the last time on 28 July 2006; piloted by Lt. Blake Coleman and Lt. Cmdr Dave Lauderbaugh as RIO. The last two F-14 squadrons, the VF-31 Tomcatters, and the VF-213 Black Lions conducted their last fly-in at Naval Air Station Oceana on 10 March 2006.

The official final flight retirement ceremony was on 22 September 2006 at Naval Air Station Oceana and was flown by Lt. Cmdr. Chris Richard and Lt. Mike Petronis as RIO in a backup F-14 after the primary aircraft experienced mechanical problems. The actual last flight of an F-14 in U.S. service took place 4 October 2006, when an F-14D of VF-31 was ferried from NAS Oceana to Republic Airport on Long Island, New York. The remaining intact F-14 aircraft in the U.S. were flown to and stored at the 309th Aerospace Maintenance and Regeneration Group “Boneyard”, at Davis-Monthan Air Force Base, Arizona; in 2007 the U.S. Navy announced plans to shred the remaining F-14s to prevent any components from being acquired by Iran. In August 2009, the 309th AMARG stated that the last aircraft were taken to HVF West, Tucson, Arizona for shredding. At that time only 11 F-14s remained in desert storage.

Iran

The sole foreign customer for the Tomcat was the Imperial Iranian Air Force, during the reign of the last Shah of Iran, Mohammad Reza Pahlavi. In the early 1970s, the Imperial Iranian Air Force (IIAF) was searching for an advanced fighter, specifically one capable of intercepting Soviet MiG-25 reconnaissance flights. After a visit of U.S. President Richard Nixon to Iran in 1972, during which Iran was offered the latest in American military technology, the IIAF narrowed its choice between the F-14 Tomcat or the McDonnell Douglas F-15 Eagle. Grumman Corporation arranged a competitive demonstration of the Eagle against the Tomcat before the Shah, and in January 1974, Iran ordered 30 F-14s and 424 AIM-54 Phoenix missiles, initiating Project Persian King, worth US$300 million. A few months later, this order was increased to a total of 80 Tomcats and 714 Phoenix missiles as well as spare parts and replacement engines for 10 years, complete armament package, and support infrastructure (including construction of the Khatami Air Base near Isfahan).

The first F-14 arrived in January 1976, modified only by the removal of classified avionics components, but fitted with the TF-30-414 engines. The following year 12 more were delivered. Meanwhile, training of the first groups of Iranian crews by the U.S. Navy was underway in the US; one of these conducted a successful shoot-down with a Phoenix missile of a target drone flying at 50,000 ft (15 km).

Following the overthrow of the Shah in 1979, the air force was renamed the Islamic Republic of Iran Air Force (IRIAF) and the post-revolution Interim Government of Iran canceled most Western arms orders. In 1980, an Iranian F-14 shot down an Iraqi Mil Mi-25 helicopter for its first air-to-air kill during the Iran–Iraq War (1980–1988). According to research by Tom Cooper, Iranian F-14s scored at least 50 air-to-air victories in the first six months of the war against Iraqi MiG-21s, MiG-23s, and some Su-20s/22s. During the same period, only one Iranian F-14 suffered damage after being hit by a nearby MiG-21 when it exploded.

Iranian Tomcats were originally used as an early-warning platform assisting other less-sophisticated aircraft with targeting and defense. They were also crucial to the defense of areas deemed vital by the Iranian government, such as oil terminals on Kharg Island and industrial infrastructure in the capital Tehran. Many of these patrols had the support of Boeing 707-3J9C in-flight refueling tankers. As fighting escalated between 1982 and 1986, the F-14s gradually became more involved in the battle. They performed well, but their primary role was to intimidate the Iraqi Air Force and avoid heavy engagement to protect the fleet’s numbers. Their presence was often enough to drive away opposing Iraqi fighters. The precision and effectiveness of the Tomcat’s AWG-9 weapons system and AIM-54A Phoenix long-range air-to-air missiles enabled the F-14 to maintain air superiority.

By 1987, the Iraqis had suffered heavy losses and were forced to find a solution to level the battlefield. They obtained Mirage F.1EQ-6 fighters from France in 1988, armed with Super530D and Magic Mk.2 air-to-air missiles. The Mirage F.1 fighters were eventually responsible for three confirmed F-14 kills. The IRIAF attempted to keep 60 F-14s operational throughout the war, but reports indicate this number was reduced to 30 by 1986 with only half fully mission-capable.

Based on research by Tom Cooper and Farzad Bishop, Iranian F-14s shot down at least 160 Iraqi aircraft during the Iran–Iraq War, including 58 MiG-23s, 33 Mirage F1s, 23 MiG-21s, 23 Su-20s/22s, nine MiG-25s, five Tu-22s, two MiG-27s, one Mil Mi-24, one Dassault Mirage 5, one B-6D, one Aérospatiale Super Frelon, and two unidentified aircraft. Despite the circumstances the F-14s and their crews faced during the war against Iraq – lacking support from AWACS, AEW aircraft, and Ground Control Intercept (GCI) – the F-14 proved to be successful in combat. It achieved this in the midst of a confrontation with an enemy that was constantly upgrading its capabilities and receiving support from three major countries – France, the US, and the USSR. Part of the success is attributed to the resilient Iranian economy and IRIAF personnel.

While Iraq’s army claimed it shot down more than 70 F-14s, the Foreign Broadcast Information System in Washington DC estimated that Iran lost 12 to 16 during the war. Cooper writes only three F-14 were shot down by Iraqis and four by Iranian surface-to-air missiles (SAM). Two Tomcats were lost in unknown circumstances during the battle, and seven crashed due to technical failure or accidents. During the war, the Iranian Air Force F-14s suffered 9 confirmed losses, one lost due to engine stall, one in unknown conditions, two by Iranian Hawk SAMs, two by MIG-23s and three were shot down by Mirage F-1EQs. There are also unconfirmed reports of the downing of 10 more Tomcats.

On 31 August 1986, an Iranian F-14A armed with at least one AIM-54A missile defected to Iraq. In addition, one or more of Iran’s F-14A was delivered to the Soviet Union in exchange for technical assistance; at least one of its crew defected to the Soviet Union.

Iran had an estimated 44 F-14s in 2009 according to Combat Aircraft. Aviation Week estimated it had 19 operational F-14s in January 2013, and Flight Global estimated that 28 were in service in 2014.

Following the US Navy’s retirement of its Tomcats in 2006, Iran sought to purchase spare parts for its aircraft. In January 2007, the U.S. Department of Defense announced that sales of spare F-14 parts would be suspended over concerns of the parts ending up in Iran. In July 2007, the remaining American F-14s were shredded to ensure that any parts could not be acquired. Despite these measures, Iran managed to significantly increase its stocks of spare parts, increasing the number of airworthy Tomcats, although as it did not manage to obtain spare parts for the aircraft’s weapon systems, the number of combat ready Tomcats was still low (seven in 2008). In 2010, Iran requested that the U.S. deliver the 80th F-14 it had purchased in 1974, but delivery was denied after the Islamic Revolution. In October 2010, an Iranian Air Force commander claimed that the country overhauls and optimizes different types of military aircraft, mentioning that Air Force has installed Iran-made radar systems on the F-14. In 2012, the Iranian Air Force’s Mehrabad Overhaul Center delivered an F-14 with upgraded weapon systems with locally sourced components, designated F-14AM. Shortages of Phoenix missiles, led to attempts to integrate the Russian R-27 semi-active radar-guided missile, but these proved unsuccessful. An alternative was the use of modified MIM-23 Hawk missiles to replace the Tomcat’s Phoenixes and Sparrows, but as the Tomcat could only carry two Hawks, this project was also abandoned, and the Fakour-90 missile, which used the guidance system of the Hawk packaged into the airframe of the Phoenix, launched. Pre-production Fakour-90s were delivered in 2017, and a production order for 100 missiles (now designated AIM-23B) was placed in 2018, intending to replace the F-14s AIM-7E Sparrow missiles.

On 26 January 2012, an Iranian F-14 crashed three minutes after takeoff. Both crew members were killed.

In November 2015, Iranian F-14s had been reported flying escort for Russian Tu-95 bombers on air strikes in Syria against the Islamic State of Iraq and the Levant.

Variants

A total of 712 F-14s were built from 1969 to 1991. F-14 assembly and test flights were performed at Grumman’s plant in Calverton on Long Island, New York. Grumman facility at nearby Bethpage, New York was directly involved in F-14 manufacturing and was home to its engineers. The airframes were partially assembled in Bethpage and then shipped to Calverton for final assembly. Various tests were also performed at the Bethpage Plant. Over 160 of the U.S. aircraft were destroyed in accidents.

F-14A

The F-14A was the initial two-seat, twin-engine, all-weather interceptor fighter variant for the U.S. Navy. It first flew on 21 December 1970. The first 12 F-14As were prototype versions (sometimes called YF-14As). Modifications late in its service life added precision strike munitions to its armament. The U.S. Navy received 478 F-14A aircraft and 79 were received by Iran. The final 102 F-14As were delivered with improved Pratt & Whitney TF30-P-414A engines. Additionally, an 80th F-14A was manufactured for Iran, but was delivered to the U.S. Navy.

F-14B

The F-14 received its first of many major upgrades in March 1987 with the F-14A Plus (or F-14A+). The F-14A’s TF30 engine was replaced with the improved GE F110-GE-400 engine. The F-14A+ also received the state-of-the-art ALR-67 Radar Homing and Warning (RHAW) system. Much of the avionics components, as well as the AWG-9 radar, were retained. The F-14A+ was later redesignated F-14B on 1 May 1991. A total of 38 new aircraft were manufactured and 48 F-14A were upgraded into B variants.

The TF30 had been plagued from the start with susceptibility to compressor stalls at high AoA and during rapid throttle transients or above 30,000 ft (9,100 m). The F110-GE-400 engine provided a significant increase in thrust, producing 23,400 lbf (104 kN) with afterburner at sea level, which rose to 30,200 lbf (134 kN) at Mach 0.9. The increased thrust gave the Tomcat a better than 1:1 thrust-to-weight ratio at low fuel quantities. The basic engine thrust without afterburner was powerful enough for carrier launches, further increasing safety. Another benefit was allowing the Tomcat to cruise comfortably above 30,000 ft (9,100 m), which increased its range and survivability. The F-14B arrived in time to participate in Desert Storm.

In the late 1990s, 67 F-14Bs were upgraded to extend airframe life and improve offensive and defensive avionics systems. The modified aircraft became known as F-14B Upgrade.

F-14D

The final variant of the F-14 was the F-14D Super Tomcat. The F-14D variant was first delivered in 1991. The original Pratt & Whitney TF30 engines were replaced with General Electric F110-GE-400 engines, similar to the F-14B. The F-14D also included newer digital avionics systems including a glass cockpit and replaced the AWG-9 with the newer AN/APG-71 radar. Other systems included the Airborne Self Protection Jammer (ASPJ), Joint Tactical Information Distribution System (JTIDS), SJU-17(V) Naval Aircrew Common Ejection Seats (NACES), and Infra-red search and track (IRST).

The GE F110-GE-400 engine provided increased thrust and additional endurance to extend range or to stay on station much longer. In the overland attack role this gave the F-14D 60 percent more striking range or one-third more time on station. The rate of climb was increased by 61 percent. The F110’s increased thrust allowed almost all carrier launches to be made in military (dry) power. While this did result in fuel savings, the main reason not to use afterburner during carrier launches was that if an engine failed the F110’s thrust in full afterburner would produce a yawing moment too abruptly for the pilot to correct. Thus the launch of an F-14D with afterburner was rare, while the F-14A required full afterburner unless very lightly loaded.

Although the F-14D was to be the definitive version of the Tomcat, not all fleet units received the D variant. In 1989, Secretary of Defense Dick Cheney refused to approve the purchase of any more F-14D model aircraft for $50 million each and pushed for a $25 million modernization of the F-14 fleet instead. Congress decided not to shut production down and funded 55 aircraft as part of a compromise. A total of 37 new aircraft were completed, and 18 F-14A models were upgraded to D-models, designated F-14D(R) for a rebuild. An upgrade to the F-14D’s computer software to allow AIM-120 AMRAAM missile capability was planned but was later terminated.

While upgrades had kept the F-14 competitive with modern fighter aircraft technology, Cheney called the F-14 1960s technology. Despite an appeal from the Secretary of the Navy for at least 132 F-14Ds and some aggressive proposals from Grumman for a replacement, Cheney planned to replace the F-14 with a fighter that was not manufactured by Grumman. Cheney called the F-14 a “jobs program”, and when the F-14 was cancelled, an estimated 80,000 jobs of Grumman employees, subcontractors, or support personnel were affected. Starting in 2005, some F-14Ds received the ROVER III upgrade.

Projected variants

The first F-14B was to be an improved version of the F-14A with more powerful “Advanced Technology Engine” F401 turbofans. The F-14C was a projected variant of this initial F-14B with advanced multi-mission avionics. Grumman also offered an interceptor version of the F-14B in response to the U.S. Air Force’s Improved Manned Interceptor Program to replace the Convair F-106 Delta Dart as an Aerospace Defense Command interceptor in the 1970s. The F-14B program was terminated in April 1974.

Grumman proposed a few improved Super Tomcat versions. The first was the Quickstrike, which was an F-14D with navigational and targeting pods, additional attach points for weapons, and added ground attack capabilities to its radar. The Quickstrike was to fill the role of the A-6 Intruder after it was retired. This was not considered enough of an improvement by Congress, so the company shifted to the Super Tomcat 21 proposed design. The Super Tomcat 21 was a proposed lower cost alternative to the Navy Advanced Tactical Fighter (NATF). The Grumman design would have the same shape and body as the Tomcat, and an upgraded AN/APG-71 radar. New GE F110-129 engines were to provide a supercruise speed of Mach 1.3 and featured thrust vectoring nozzles. The version would have increased fuel capacity and modified control surfaces for improved takeoffs and lower landing approach speed. The Attack Super Tomcat 21 version was the last Super Tomcat proposed design. It added even more fuel capacity, more improvements to control surfaces, and possibly an active electronically scanned array (AESA) radar from the canceled A-12 attack aircraft.

The last “Tomcat” variant was the ASF-14 (Advanced Strike Fighter-14), Grumman’s replacement for the NATF concept. By all accounts, it would not be even remotely related to the previous Tomcats save in appearance, incorporating the new technology and design know-how from the Advanced Tactical Fighter (ATF) and Advanced Tactical Aircraft (ATA) programs. The ASF-14 would have been a new-build aircraft; however, its projected capabilities were not that much better than that of the (A)ST-21 variants. In the end, the Attack Super Tomcat was considered to be too costly. The Navy decided to pursue the cheaper F/A-18E/F Super Hornet to fill the fighter-attack role.

Operators

Islamic Republic of Iran Air Force

72nd TFS: F-14A, 1976–1985
73rd TFS: F-14A, 1977–1985
81st TFS: F-14A, 1977–present
82nd TFS: F-14A, 1978–present
83rd Tomcat Flight School: F-14A, 1978–1979
83rd TFS: F-14A, renamed former 62nd TFS

United States

United States Navy operated F-14 from 1974 to 2006
Navy Fighter Weapons School (TOPGUN) (Merged with Strike University (Strike U) to form Naval Strike and Air Warfare Center (NSAWC) 1996)
VF-126 Bandits (Disestablished 1 April 1994)
VF-1 Wolfpack (Disestablished 30 September 1993)
VF-2 Bounty Hunters (Pacific Fleet through 1996, Atlantic Fleet 1996–2003, Pacific Fleet 2003–present; redesignated VFA-2 with F/A-18F, 1 July 2003)
VF-11 Red Rippers (Redesignated to VFA-11 with F/A-18F, May 2005)
VF-14 Tophatters (Redesignated VFA-14 with F/A-18E, 1 December 2001, and transferred to Pacific Fleet, 2002)
VF-21 Freelancers (Disestablished 31 January 1996)
VF-24 Fighting Renegades (Disestablished 20 August 1996)
VF-31 Tomcatters (Redesignated VFA-31 with F/A-18E, October 2006)
VF-32 Swordsmen (Redesignated VFA-32 with F/A-18F, 1 October 2005)
VF-33 Starfighters (Disestablished 1 October 1993)
VF-41 Black Aces (Redesignated VFA-41 with F/A-18F, 1 December 2001)
VF-51 Screaming Eagles (Disestablished 31 March 1995)
VF-74 Bedevilers (Disestablished 30 April 1994)
VF-84 Jolly Rogers (Disestablished 1 October 1995; squadron heritage and nickname transferred to VF-103)
VF-102 Diamondbacks (Redesignated VFA-102 with F/A-18F, 1 May 2002, and transferred to Pacific Fleet)
VF-103 Sluggers/Jolly Rogers (Redesignated VFA-103 with F/A-18F, 1 May 2005)
VF-111 Sundowners (Disestablished 31 March 1995; squadron heritage and nickname adopted by VFC-111)
VF-114 Aardvarks (Disestablished 30 April 1993)
VF-142 Ghostriders (Disestablished 30 April 1995)
VF-143 Pukin’ Dogs (Redesignated VFA-143 with F/A-18E, early 2005)
VF-154 Black Knights (Redesignated VFA-154 with F/A-18F, 1 October 2003)
VF-191 Satan’s Kittens (Disestablished 30 April 1988)
VF-194 Red Lightnings (Disestablished 30 April 1988)
VF-211 Fighting Checkmates (Pacific Fleet through 1996, then transferred to Atlantic Fleet; redesignated VFA-211 with F/A-18F, 1 October 2004)
VF-213 Black Lions (Pacific Fleet through 1996, then transferred to Atlantic Fleet; redesignated VFA-213 with F/A-18F, May 2006)

Naval Air Systems Command Test and Evaluation Squadrons

VX-4 Evaluators (Disestablished 30 September 1994 and merged into VX-5 to form VX-9)
VX-9 Vampires (Currently operates F/A-18C/D/E/F, EA-18G, F-35C, EA-6B, AV-8B, AH-1 and UH-1)
VX-23 Salty Dogs (Currently operates F/A-18A+/B/C/D/E/F, EA-6B, EA-18G, F-35C and T-45)
VX-30 Bloodhounds (Currently operates P-3, C-130, S-3)

Fleet Replacement Squadrons

VF-101 Grim Reapers; Atlantic Fleet, then sole single-site, F-14 FRS (Disestablished 15 September 2005; squadron heritage and nickname adopted by a recently established unit, designated VFA-101, which is currently the sole F-35C Fleet Replacement Squadron in May 2012)
VF-124 Gunfighters; Pacific Fleet F-14 FRS
(Disestablished 30 September 1994)

Naval Air Force Reserve Squadrons

VF-201 Hunters (Redesignated VFA-201 and reequipped with F/A-18A+ on 1 January 1999; disestablished 30 June 2007)
VF-202 Superheats (Disestablished 31 December 1994)
VF-301 Devil’s Disciples (Disestablished 11 September 1994)
VF-302 Stallions (Disestablished 11 September 1994)

Naval Air Force Reserve Squadron Augmentation Units (SAUs)

VF-1285 Fighting Fubijars (Disestablished September 1994); augmented VF-301 and VF-302
VF-1485 Americans (Disestablished September 1994); augmented VF-124
VF-1486 Fighting Hobos (Disestablished September 2005); augmented VF-101

Specifications (F-14D)

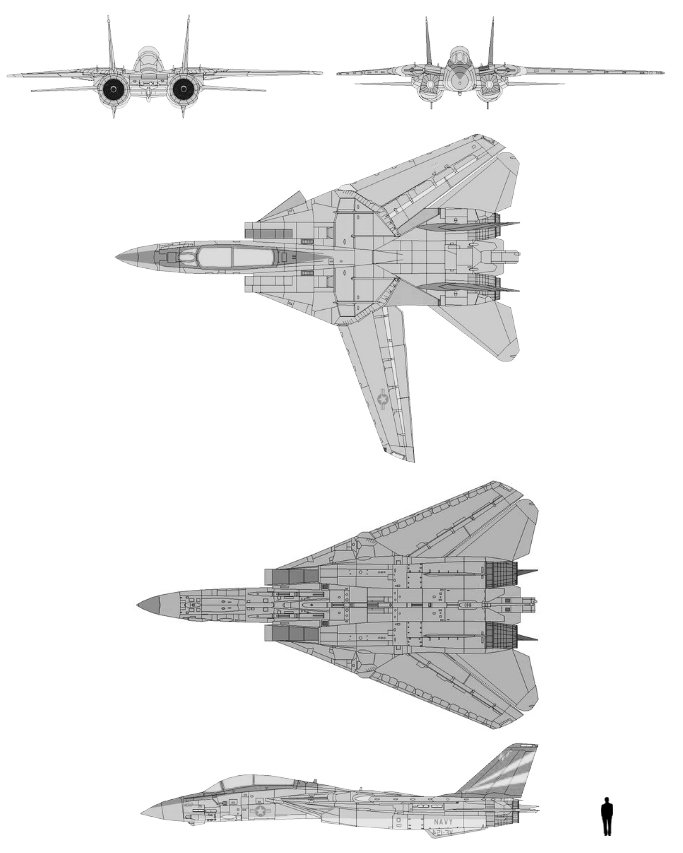

Schematic diagram of Grumman F-14 Tomcat

Data from U.S. Navy file Spick, M.A.T.S. Flight International 30 March 1985 : F-14D for digital Grumman’s Tomcat is to remain the US Navy’s premier fighter

General characteristics

Crew: 2 (Pilot and Radar Intercept Officer)
Length: 62 ft 9 in (19.13 m)
Wingspan: 64 ft (20 m)
Lower wingspan: 38 ft 0 in (11.58 m) swept
Height: 16 ft (4.9 m)
Wing area: 565 sq ft (52.5 m2) wings only
1,008 sq ft (94 m2) effective area including fuselage
Airfoil: root: Grumman (1.74)(35)9.6)-(1.1)(30)(1.1); tip: Grumman (1.27)(30)(9.0)-(1.1)(40)(1.1)
Empty weight: 43,735 lb (19,838 kg)
Gross weight: 61,000 lb (27,669 kg)
Max takeoff weight: 74,350 lb (33,725 kg)
Fuel capacity: 16,200 lb (7,348 kg) internal fuel; 2x optional 267 US gal (222 imp gal; 1,010 l) / 1,756 lb (797 kg) capacity external tanks
Powerplant: 2 × General Electric F110-GE-400 afterburning turbofan engines, 16,610 lbf (73.9 kN) thrust each dry, 28,200 lbf (125 kN) with afterburner

Performance

Maximum speed: 1,342 kn (1,544 mph, 2,485 km/h)
Maximum speed: Mach 2.34
Combat range: 500 nmi (580 mi, 930 km)
Ferry range: 1,600 nmi (1,800 mi, 3,000 km)
Service ceiling: 50,000 ft (15,000 m) plus
Rate of climb: 45,000 ft/min (230 m/s) plus
Wing loading: 96 lb/sq ft (470 kg/m2)
48 lb/sq ft (230 kg/m2) effective
Thrust/weight: 0.88
1 with loaded weight & 50% internal fuel)

Armament

Guns: 1× 20 mm (0.787 in) M61A1 Vulcan 6-barreled Gatling cannon, with 675 rounds
Hardpoints: 10 total: 6× under-fuselage, 2× under nacelles and 2× on wing gloves with a capacity of 14,500 lb (6,600 kg) of ordnance and fuel tanks,
Rockets:
7x LAU-10 rocket pods (for a total of 28 rockets)
Others:
Tactical Airborne Reconnaissance Pod System (TARPS)
LANTIRN Targeting System (LTS) pod (AN/AAQ-14)
2× 267 US gal (1,010 l; 222 imp gal) drop tanks for extended range/loitering time
Missiles:
Air-to-air missiles: AIM-54 Phoenix, AIM-7 Sparrow, AIM-9 Sidewinder
Loading configurations:
2× AIM-9 + 6× AIM-54 (Rarely used due to weight stress on airframe)
2× AIM-9 + 2× AIM-54 + 3× AIM-7 (Most common load during Cold War era)
2× AIM-9 + 4× AIM-54 + 2× AIM-7
2× AIM-9 + 6× AIM-7
4× AIM-9 + 4× AIM-54
4× AIM-9 + 4× AIM-7
Bombs:
JDAM precision-guided munition (PGMs)
Paveway series of laser-guided bombs
Mk 80 series of unguided iron bombs
Mk 20 Rockeye II

Avionics

Hughes AN/APG-71 radar
AN/ASN-130 Inertial navigation system, Infra-red search and track, TCS
Remotely Operated Video Enhanced Receiver (ROVER) upgrade

Tomcat logo

The Tomcat logo design came when Grumman’s Director of Presentation Services, Dick Milligan, and one of his artists, Grumman employee Jim Rodriguez, were asked for a logo by Grumman’s Director of Business Development and former Blue Angels No. 5 pilot, Norm Gandia. Per Rodriguez, “He asked me to draw a lifelike Tomcat wearing boxing gloves and trunks sporting a six-shooter on his left side; where the guns are located on the F-14, along with two tails.” The Cat was drawn up after a tabby cat was sourced and used for photographs, and named “Tom”. The logo has gone through many variations, including one for the then–Imperial Iranian Air Force F-14, called “Ali-cat”. The accompanying slogan “Anytime Baby!” was developed by Norm Gandia as a challenge to the U.S. Air Force’s McDonnell Douglas F-15 Eagle.

Notable appearances in media

The Grumman F-14 Tomcat was central to the 1986 film Top Gun. The aviation-themed film was such a success in creating interest in naval aviation that the US Navy, which assisted with the film, set up recruitment desks outside some theaters. Producers paid the US Navy $886,000 as reimbursement for flight time of aircraft in the film with an F-14 billed at $7,600 per flight hour.

Two F-14As of VF-84 from the USS Nimitz appeared in the 1980 film The Final Countdown, with four from the squadron in the 1996 release Executive Decision, the Jolly Rogers’ final film appearance before being disestablished. The military legal drama TV series JAG (1995–2005) featured lead character Harmon Rabb, a Tomcat pilot-turned-lawyer, and the Tomcat was a central part of the Stephen Coonts novel Final Flight.

The F-14 Tomcat is the primary focus of the 1987 Williams pinball machine “F-14 Tomcat”.

AND, the Tomcat was the central plane in the drama/documentary Speed & Angels, produced by Paco Chierici.

Fun/Interesting F-14 Videos

“The Last of The Dogfighters: The Saints of VFC-13” was the initial “sizzle reel” to help sell the USN & investors on the Speed & Angels documentary. It’s an awesome insight into how fighter pilots think and train, and stars Paco Chierici.

LTJG Royal Polk Gordon IV and LT Joesph Pommerer decided to compose and sing this song to their KC-135 crew while taking fuel on their Tomcat for the last time Feb. 7 2006.
